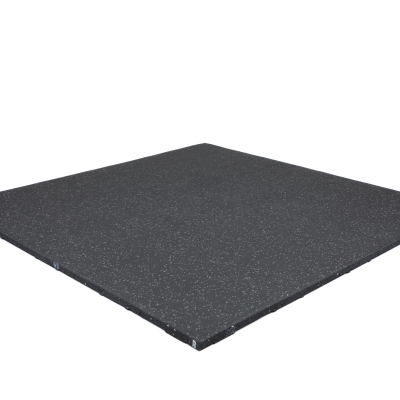

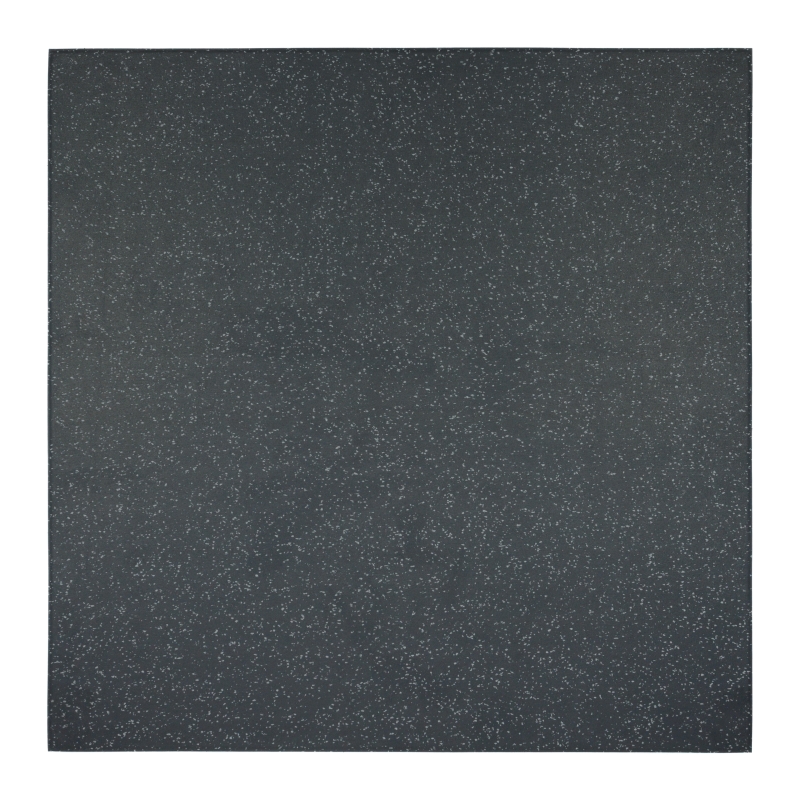

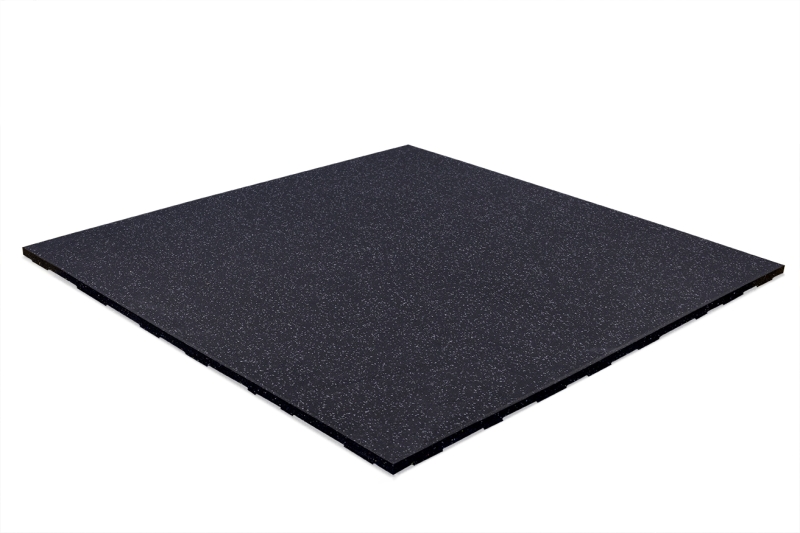

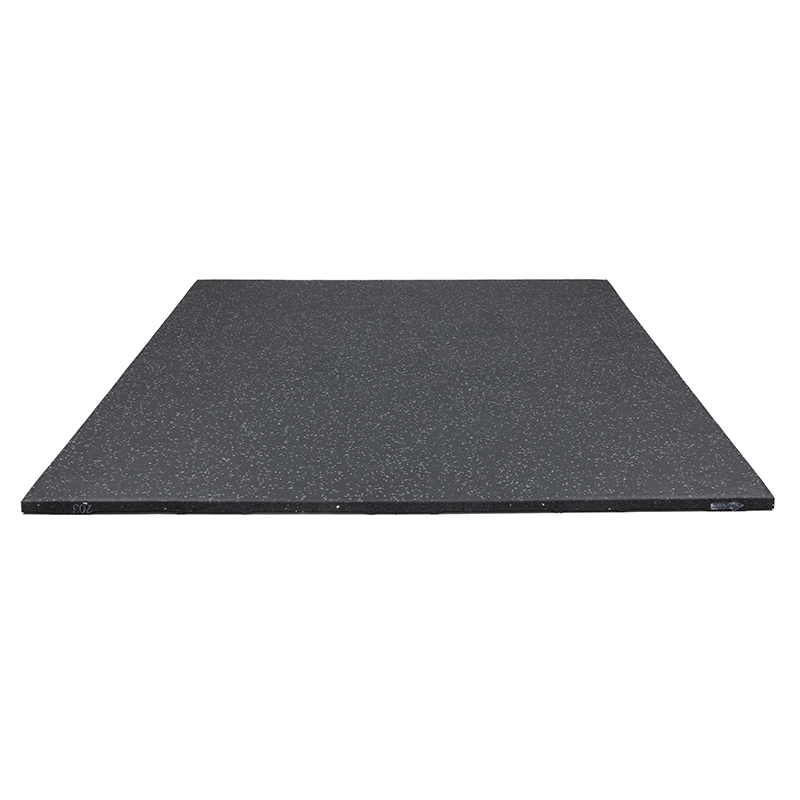

Forge Strength® X-Connect Tile 20mm x 100cm x 100cm - Dark Grey
IN STOCK
Commercial leasing - Find out more
Same day shipping
Free shipping on orders over £500
Price match guarantee
Installation available
Try before you buy
Description
**MINIMUM ORDER REQUIREMENT 20 TILES, PLEASE CONTACT US FOR FURTHER INFORMATION**

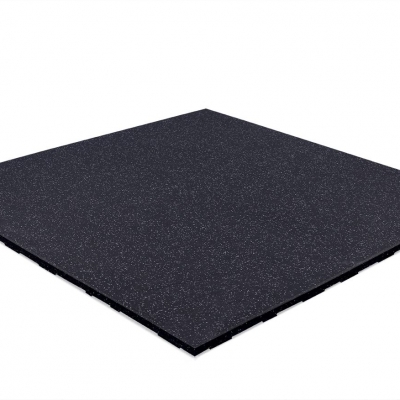

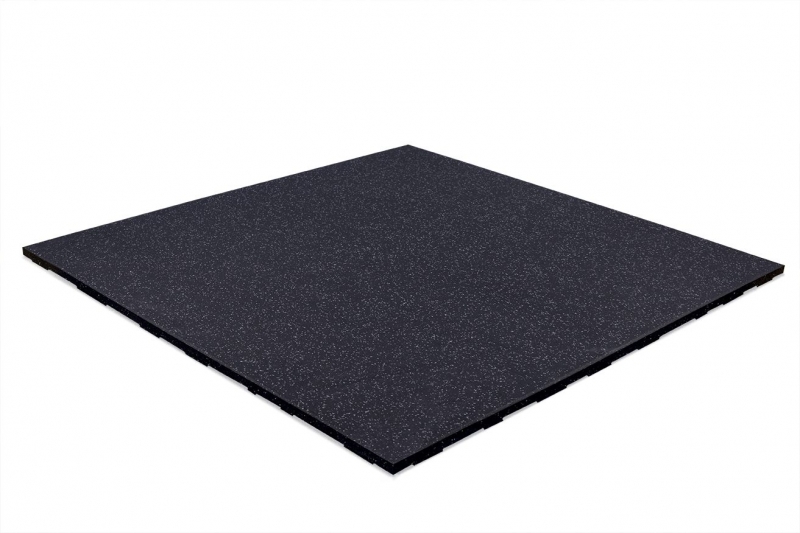

The X Connect Fitness Tile 20mm – Dark Grey is a premium interlocking rubber tile designed for high-impact training environments. Built for strength, durability, and ease of installation, this flooring solution is ideal for commercial gyms, functional training areas, free weight zones, and home gyms where performance and longevity matter.
The Fitness Tiles Connect range is engineered to withstand the continuous dropping of heavy free weights. An extremely dense top layer delivers outstanding impact protection, helping to protect both equipment and the subfloor beneath. Beneath this, the integrated sublayer and purpose-designed bottom structure effectively absorbs noise and vibration, while providing additional protection to the underlying screed or flooring surface.
These tiles can be installed directly over existing floor coverings, making them a practical choice for both new installations and refurbishments. The unique connector system allows for fast, secure installation without adhesives.
In addition to convenience, the connector system offers:
- Nearly invisible joints for a clean, professional finish
- Improved hygiene, as tight connections reduce dirt build-up
- Consistent alignment across large floor areas

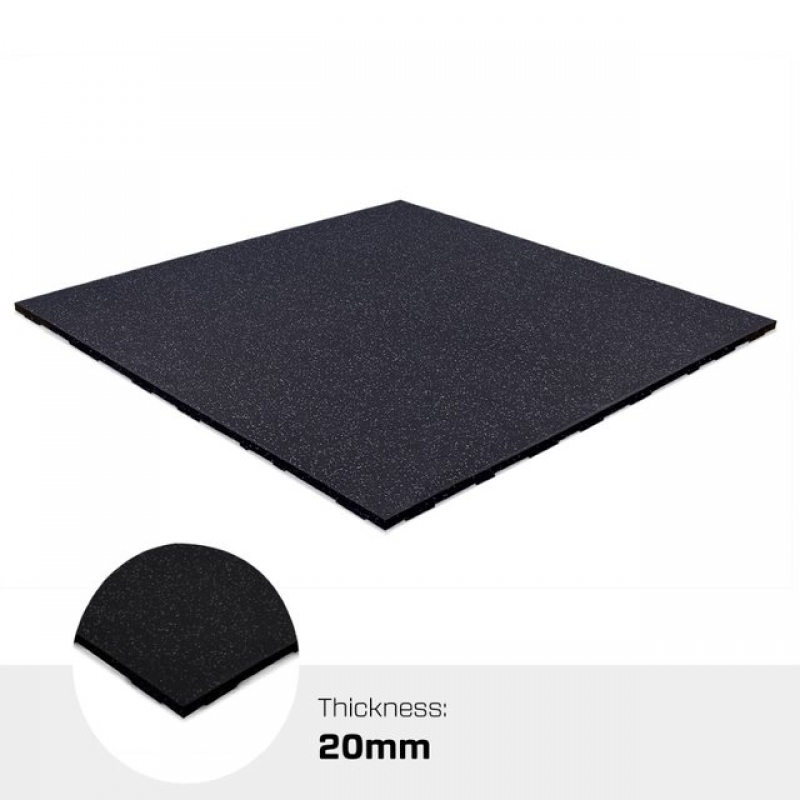

With a thickness of 20mm, these tiles are produced in a large 1,000 x 1,000mm format, double the size of many standard gym tiles. This reduces installation time and creates a more seamless appearance across the floor. The Fitness Tile Connect Dark Grey is manufactured from 100% SBR rubber, delivering excellent durability, resilience, and long-term performance in demanding training environments.
GTIN: 0747015777953
EAN: 747015777953
Product features

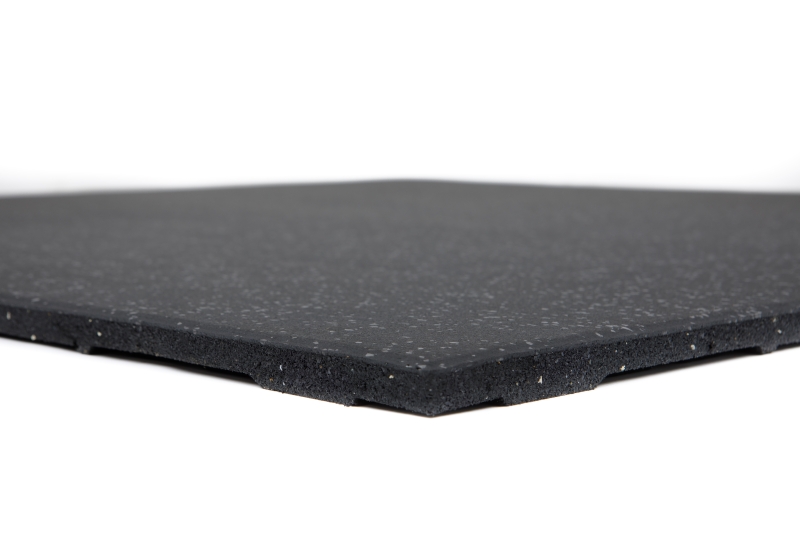

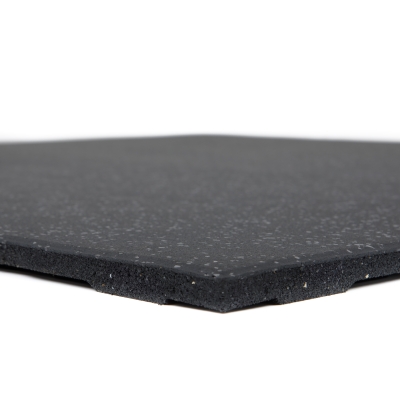

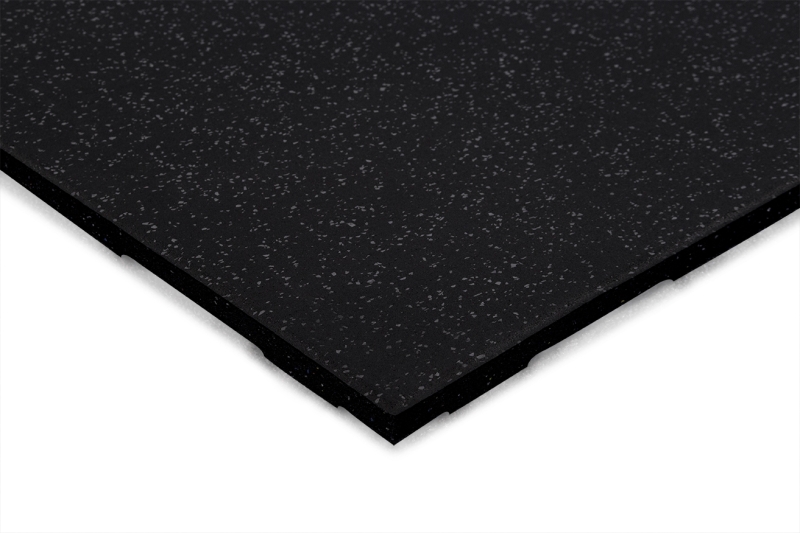

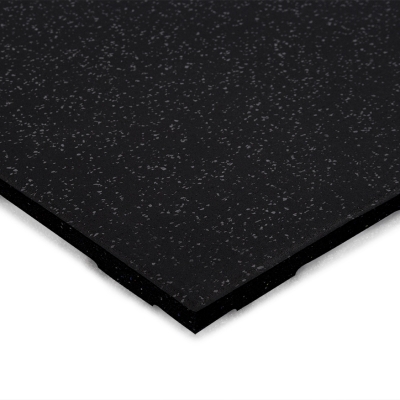

The Layers of the X-Connect Fitness Tile

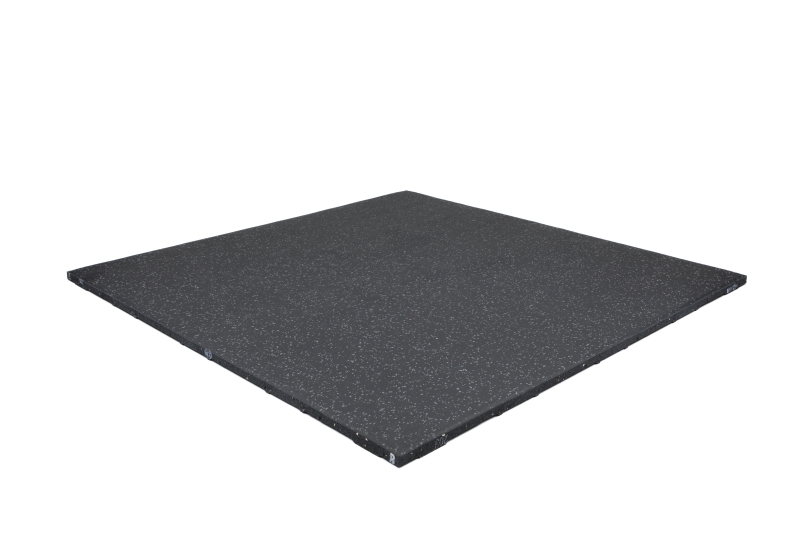

Top Layer - Cut from high-density rubber flooring
- 2mm thick, extremely dense and hard-wearing top layer (1,400 kg/m³)
- Durable, impact-reducing surface designed for heavy gym use
- Easy to clean with an almost closed surface structure

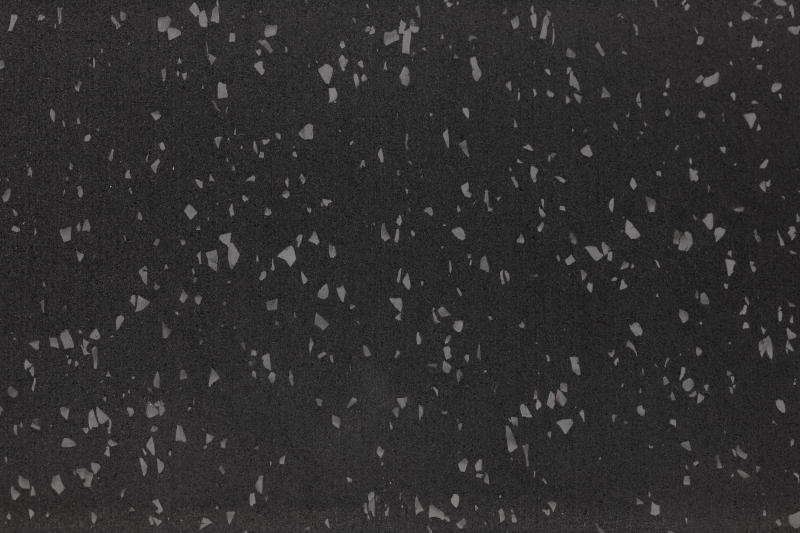

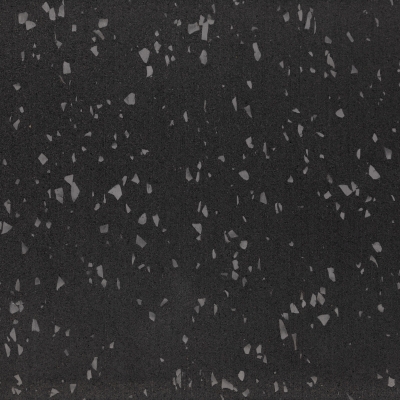

- Black base with coloured EPDM granules for a professional finish
Base Layer - Made from recycled rubber and EPDM
- Produced from 100% recycled tyres
- High-density, shock-absorbing layer
- Provides excellent protection to the subfloor as a result of its density
- Enhances durability and long-term performance

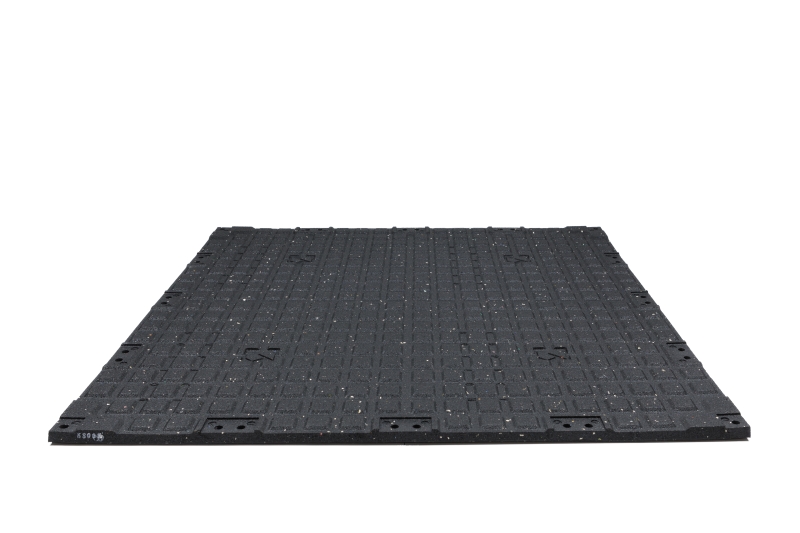

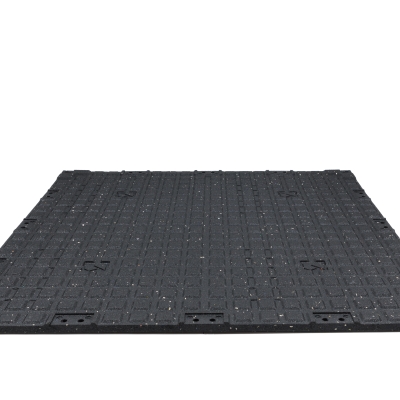

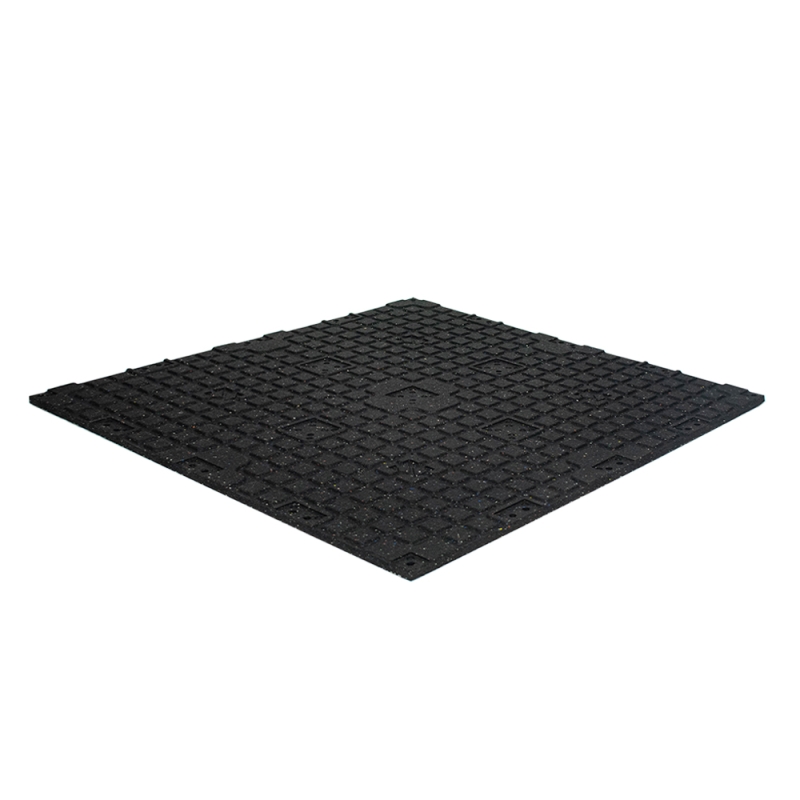

Bottom Pattern - Stockz uniquely designed bottom structure
- Engineered stud pattern with strong acoustic properties
- Studs reduce impact force and sound vibration transferred to the subfloor
- Contributes to noise reduction and additional subfloor protection
- This multi-layer construction ensures the X-Connect Fitness Tile delivers outstanding durability, impact absorption, and acoustic performance in demanding training environments.
The Connectors
The Stockz patented impact bottom is specifically designed for optimal shock absorption and the reduction of impact sound. The structured pattern on the underside of the tile incorporates integrated connection holes for the connector system.
Each tile is manufactured in a single production process, during which the top layer is vulcanised directly onto the bottom layer in one step. This ensures exceptional strength, consistency, and long-term durability between all layers of the tile.
The Connector System
The Stockz patented impact bottom is specifically designed for optimal shock absorption and the reduction of impact sound. The structured pattern on the underside of the tile incorporates integrated connection holes for the connector system.
Each tile is manufactured in a single production process, during which the top layer is vulcanised directly onto the bottom layer in one step. This ensures exceptional strength, consistency, and long-term durability between all layers of the tile.

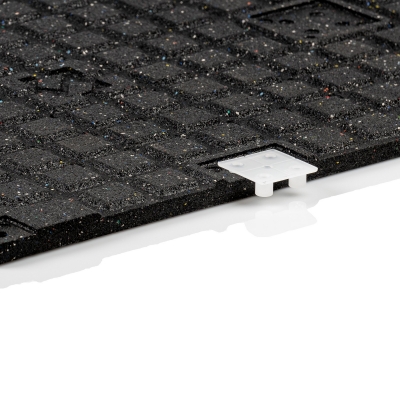

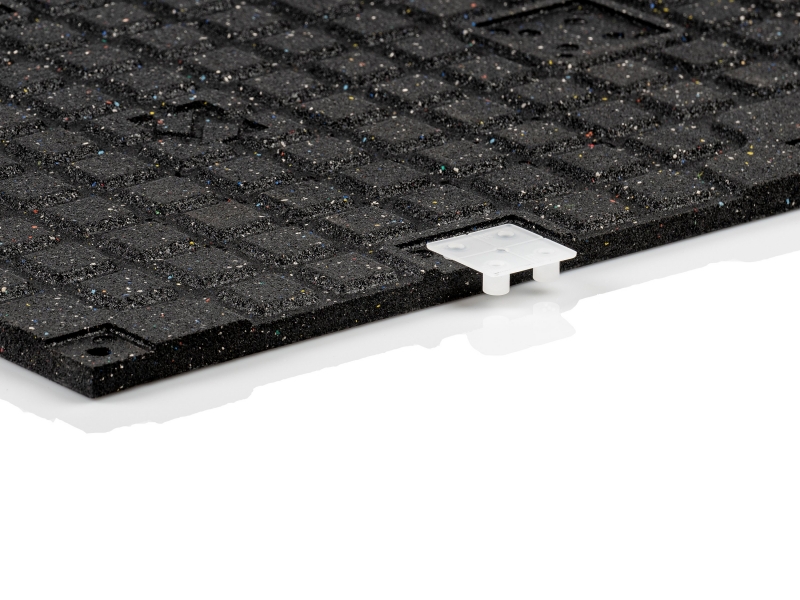

- The X-Connect connector system provides a secure yet flexible installation solution without the need for glue or adhesives.
- Connectors are placed every 20 centimetres, resulting in an average of five connectors per linear metre
- Manufactured from polypropylene, offering high strength and durability
- Once connected, tiles remain perfectly aligned and firmly in place
This system creates a phenomenal free-floating floor, allowing the surface to move naturally under load while maintaining stability. Installation is fast, clean, and efficient, without the need for adhesives or complicated fitting methods.
Specification
- High impact protection against heavy weights and dumbbells
- Excellent shock and sound absorption
- Surface cut from high density rubber roll flooring (70% EPDM + 30% SBR)
- Base made of recycled rubber and EPDM
- Easy installation
- Simple installation and almost invisible joins
- 7 plastic connectors included per 20mm tile

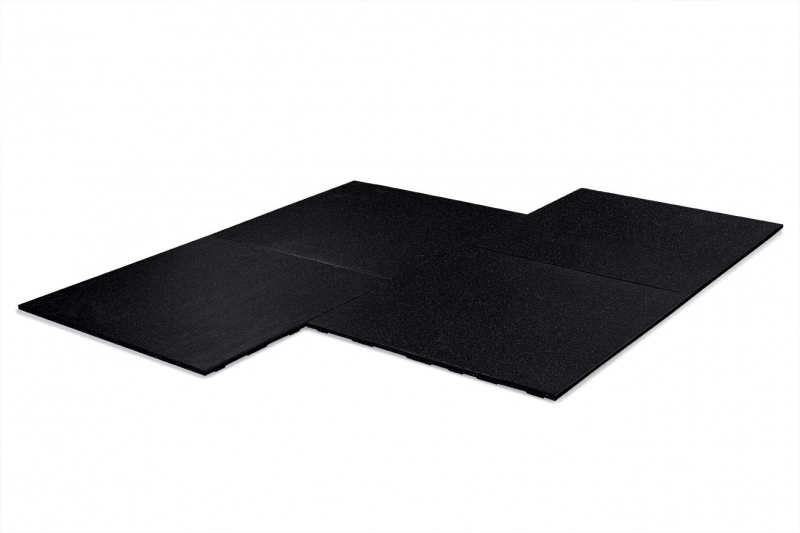

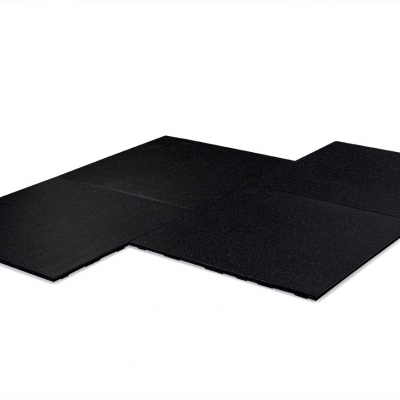

- All rubber tiles have a tolerance as detailed in the specification due to the way they are produced, for that reason, we always recommend laying them "brick style" - see explanatory video.
- Density: 1.000 – 1.100 kg/m³
- Colour: 100% Dark Grey
- Material: High density rubber roll surface (70% EPDM + 30% SBR) and base made of recycled rubber and EPDM
- Dimensions: Thickness: 20 mm, Length: 1000mm, Width: 1000mm
Benefits Of X-Connect Tiles:
- Acoustic qualities
- Easy to clean
- Extensive five-year warranty
- Easy to install
Installation
Please view the installation video on this product page for an easy guide to fitting our X-Connect tiles. The plastic connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place. The rubber tiles can easiliy be cut to size using a utility knife.
Sub-floor
The sub-floor requires to be level, firm and dry.
Cleaning
Depending on traffic, the tiles can be kept clean by a standard vacuum cleaner and damp mop. Cleaning machines can be used but should have the correct pads for rubber flooring to prevent abrasion. A pH neutral cleaner with warm water should only be used and not solvent-based detergents. Newly installed floors would benefit from a degreaser in the first few weeks. We also recommend using our Stockz rubber floor cleaner
