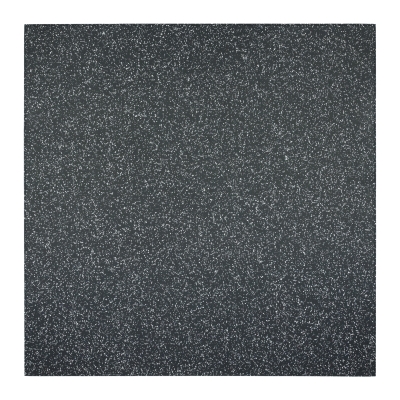

X-Connect Gym Flooring Tile 20mm x 100cm x 100cm - Grey


WAS £49.99
NOW £44.99


Save more when you purchase together

Tick options then click Add to Basket


Stockz Floor Cleaner
Normally £9.99
ONLY £7.49


X-Connect 20mm Ramp Corner - Grey
Normally £24.99
ONLY £19.99


X-Connect 20mm Ramp Edge - Grey
Normally £24.99
ONLY £19.99

Same day shipping

Free shipping on orders over £250

Price match guarantee

Installation available

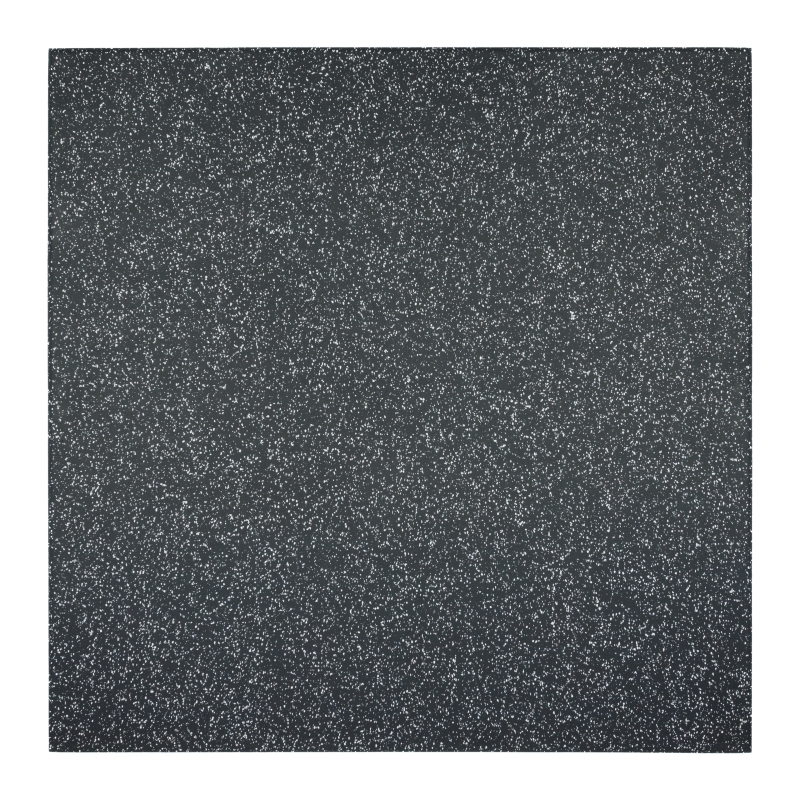

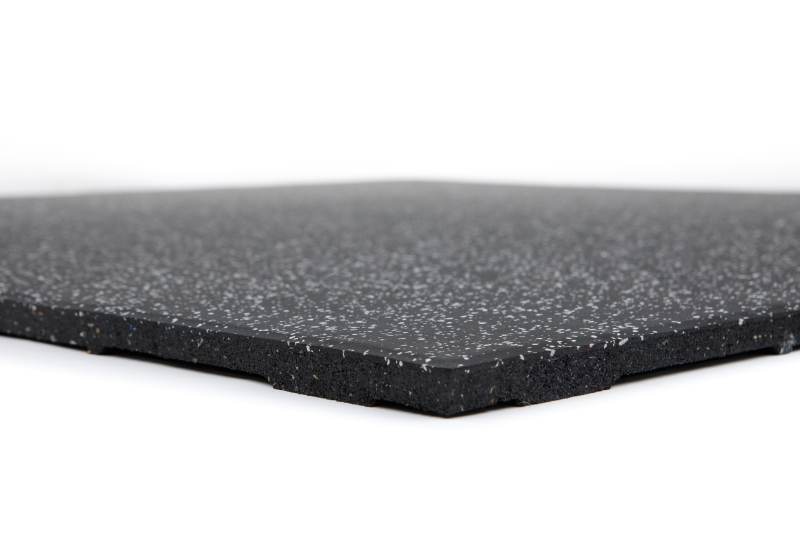

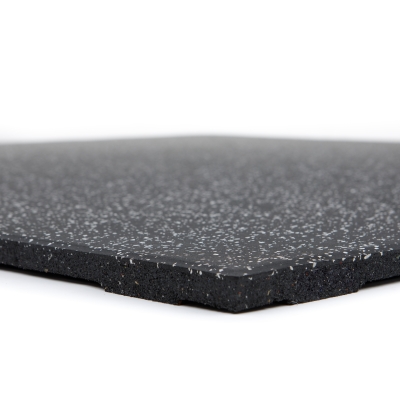

Our X-connect premium rubber flooring tiles are highly durable and supplied with a 5 year guarantee as standard. The supremely dense top layer provides high impact protection against heavy weights and dumbbells. The bottom structure absorbs noise and protects the sublayer or screed. The tiles can be installed easily with the accompanying plastic connectors, which create almost invisible joins. The X-connect tile is available in green, red, dark grey, blue and grey.

Download Brand Brochure

Product features


  • Thickness: 20mm
  • Width and length: 20mm x 1000mmx 1000mm
  • Tolerances: Length and Width ± 5mm, thickness ± 2mm
  • Colour: 85% Black/15% Grey
  • Surface material: High-density rubber roll flooring in SBR and EPDM
  • Bottom material: Recycled rubber and EPDM
  • Bulk density top layer: Approx. 1.400 kg/m3
  • Bulk density sub layer: Approx. 1.000 kg/m3
  • Shock absorption: 61%, EN14808
  • Vertical deformation: 5.0mm, EN14809
  • Warranty: Tiles are under warranty for 5 years
  • Fire certification: Standard Efl

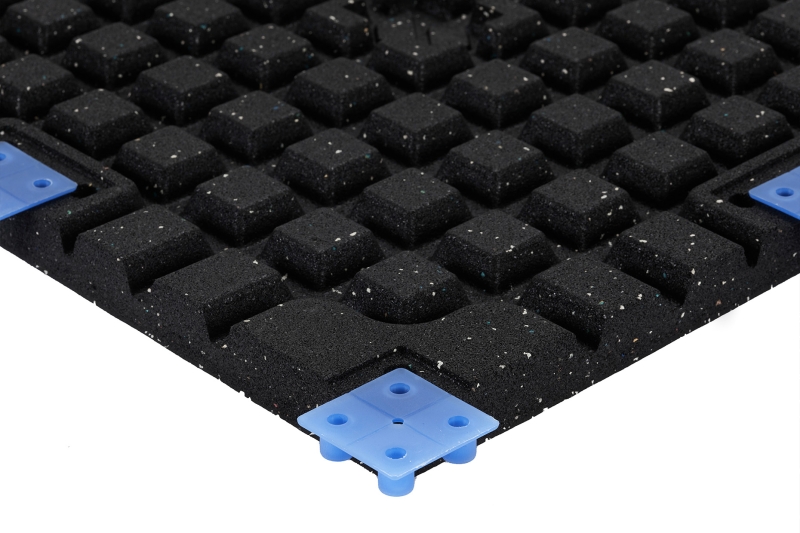

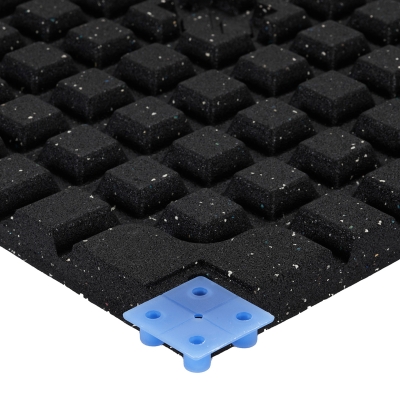

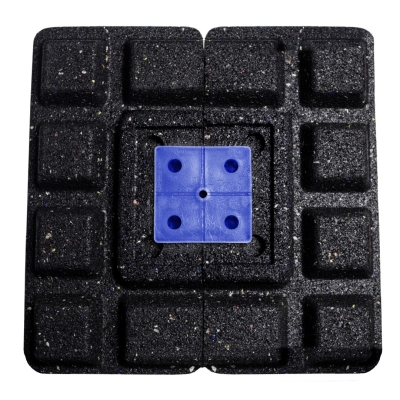

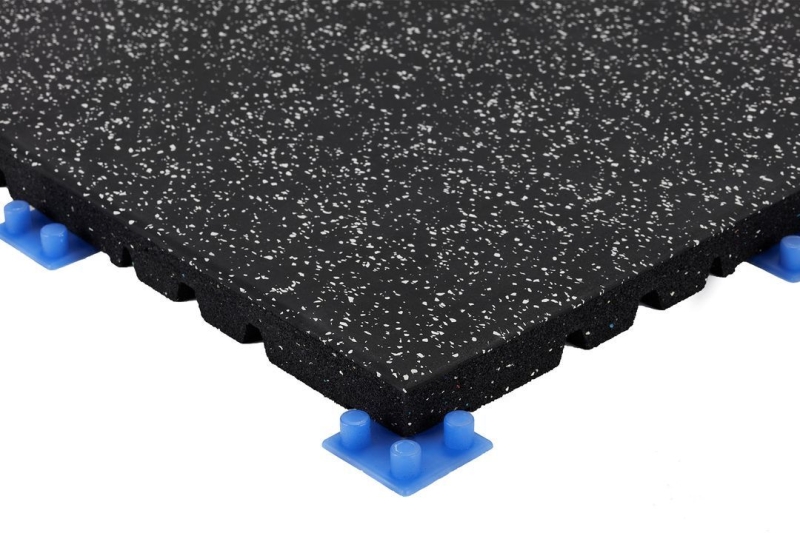

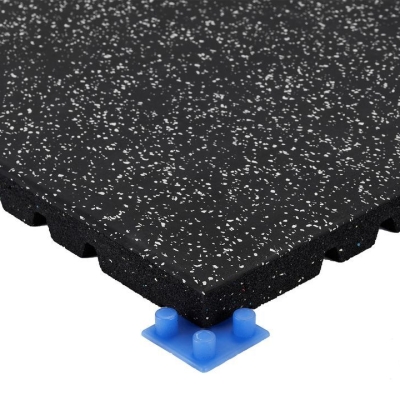

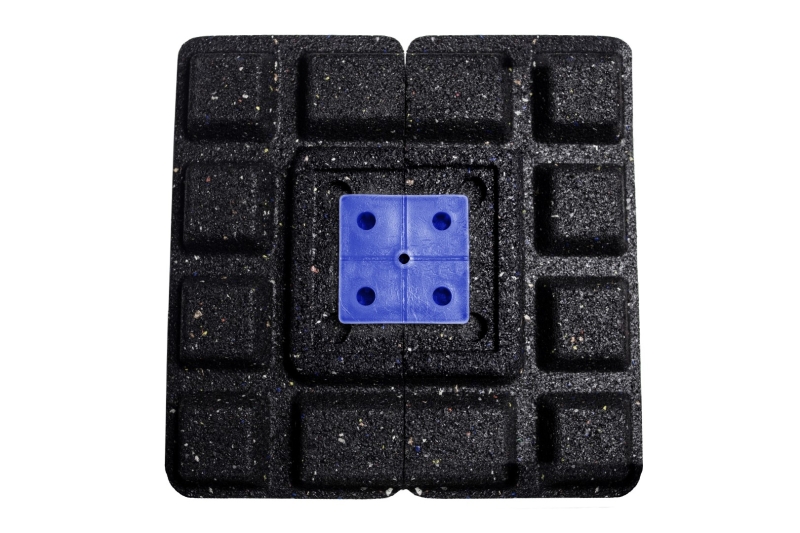

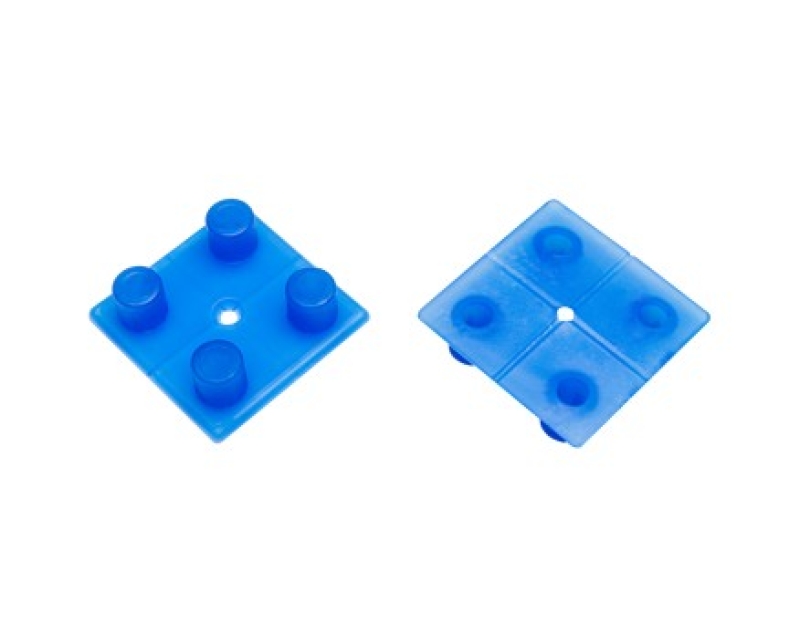

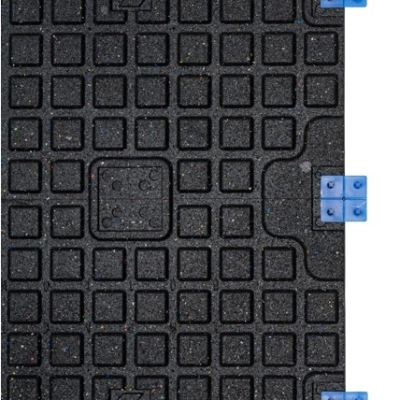

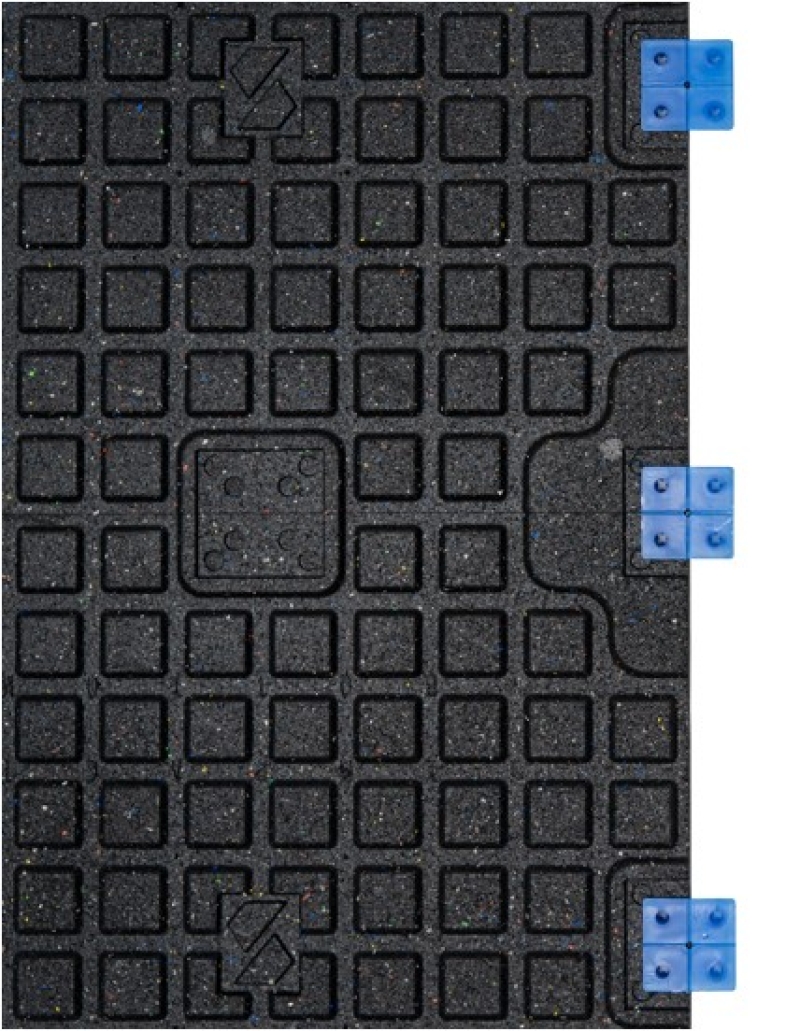

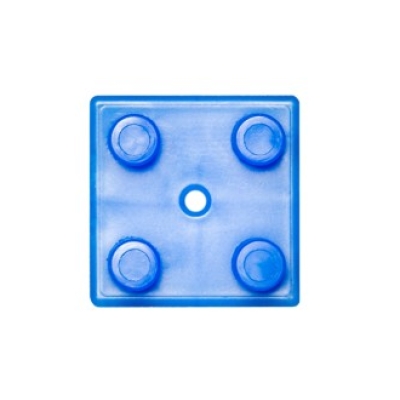

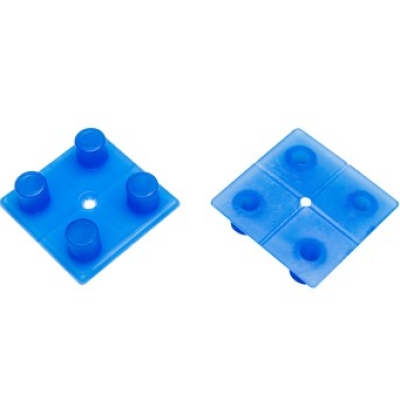

Please view the installation video on this product page for an easy guide to fitting our X-Connect tiles. The plastic connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place. The rubber tiles can easiliy be cut to size using a utility knife.


The sub-floor requires to be level, firm and dry.


Depending on traffic, the tiles can be kept clean by a standard vacuum cleaner and damp mop. Cleaning machines can be used but should have the correct pads for rubber flooring to prevent abrasion. A pH neutral cleaner with warm water should only be used and not solvent-based detergents. Newly installed floors would benefit from a degreaser in the first few weeks. We also recommend using our Stockz rubber floor cleaner
