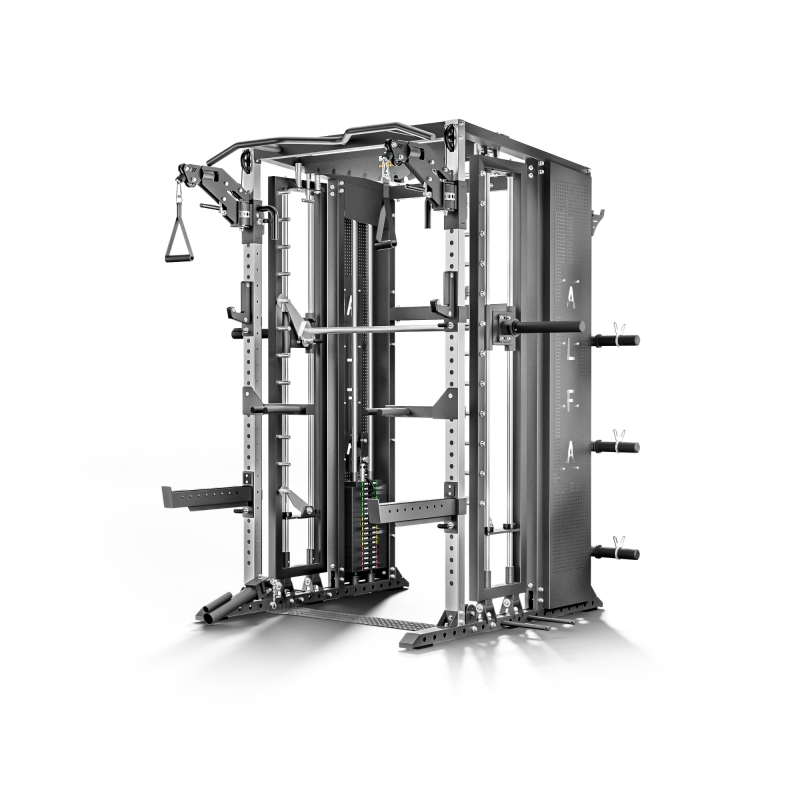

BRUTEforce® Alfa Cut Functional Trainer Converging Smith

Description

BRUTEforce® Australia continues to dominate the world’s home gym market with our forward thinking innovations. We strive to create new and inspiring ideas that enhance every aspect of your home workout. The Alfa is no exception.

High-grade steel and top quality fixings combine to solidify the structural core of this machine. Strong welds are a vital key in ensuring structural integrity.

The most unique feature of ALFA is by far the Adjustable Converging Smith Machine. Adjustable to 6 varying angles, the smith allows for more focused targeting of muscle groups and increased workout intensity.

• 6 Adjustable angles
• Easy pin adjustment

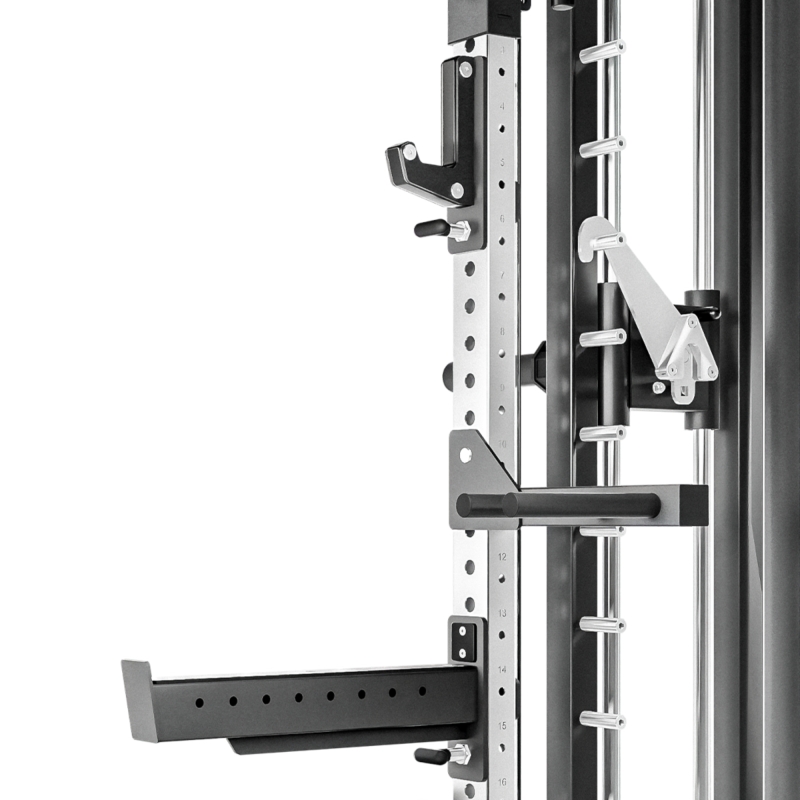

• 12 Racking points for smith hooks
• Safety hooks for long bar smith exercises
• Quick release system
• 2 included ALFA smith attachments:
  • Smith Bar Long - Base weight 23kg (50lbs) - load capacity static weight 350kg (770lbs)
  • Smith Bar Handles Short - Base weight 10kg (22lbs) Each - load capacity static weight 175kg (385lbs) each

Product features

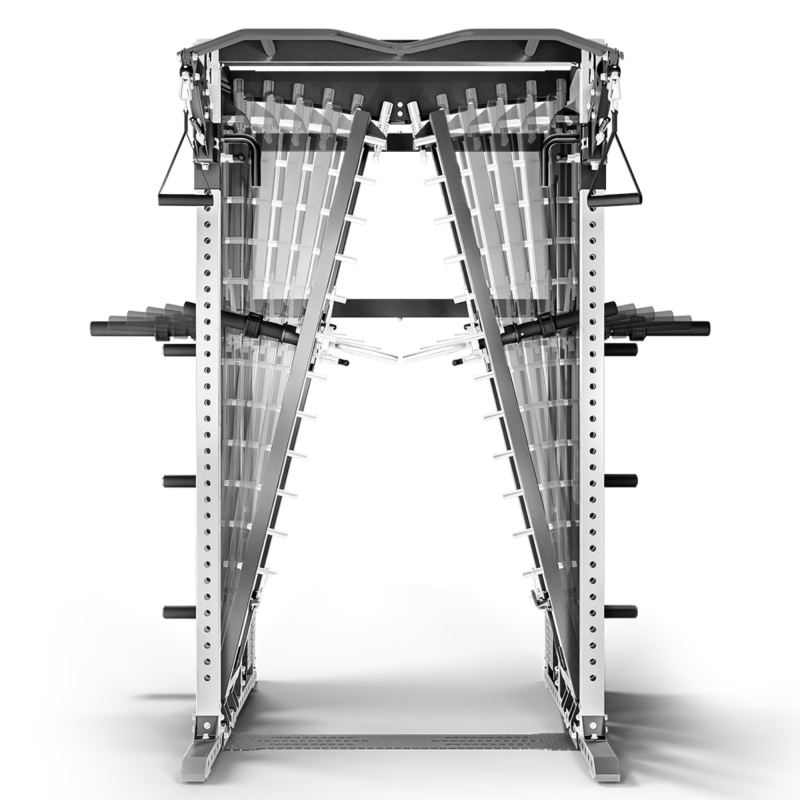

SMITH WITH ANGLES

The most unique feature of ALFA is by far the Adjustable Converging Smith Machine. Adjustable to 6 varying angles, the smith allows for more focused targeting of muscle groups and increased workout intensity.

• Degrees: 0 | 3| 6 | 9 | 12 | 15
• The unique attachment fixing cradles allow for ease of attaching and detaching any of the six smith handles, bars and leg press plate.
• Attachments: Short Handles | D-Handles | Long Bar Multi-Grip | Safety Squat Bar | Leg Press Plat

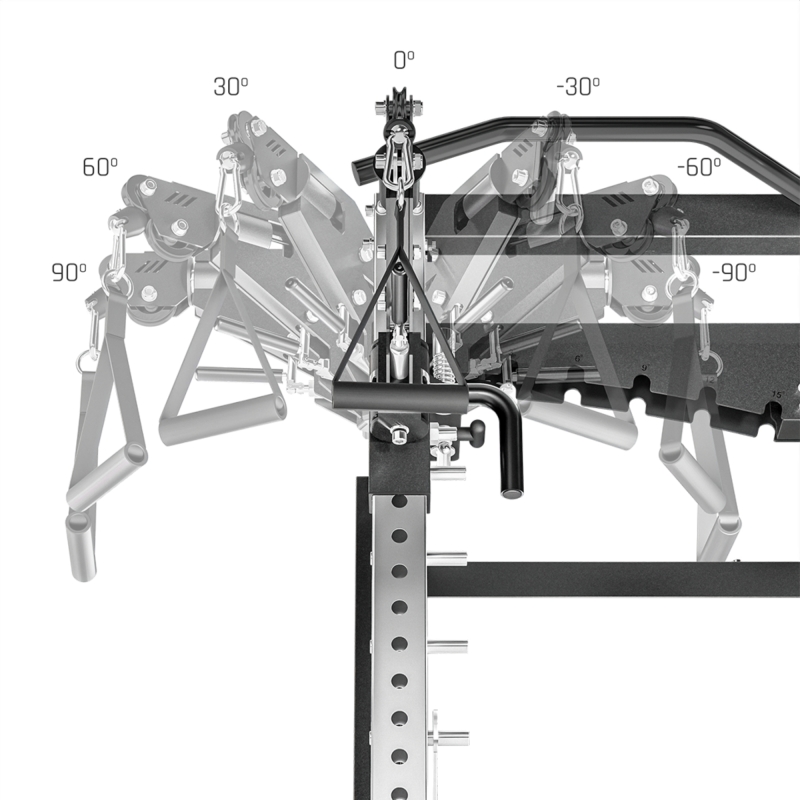

PULLEYS

Featuring the 2:1 premium nylon pulley system on the front power rack, our premium bearings insure that smooth cable feel. A fixing point for the many attachments included with the ALFA, these cables with range provide the ultimate cable system.

• 22 different height adjustments
• Pivot arms consisting of 8-12 gauge steel

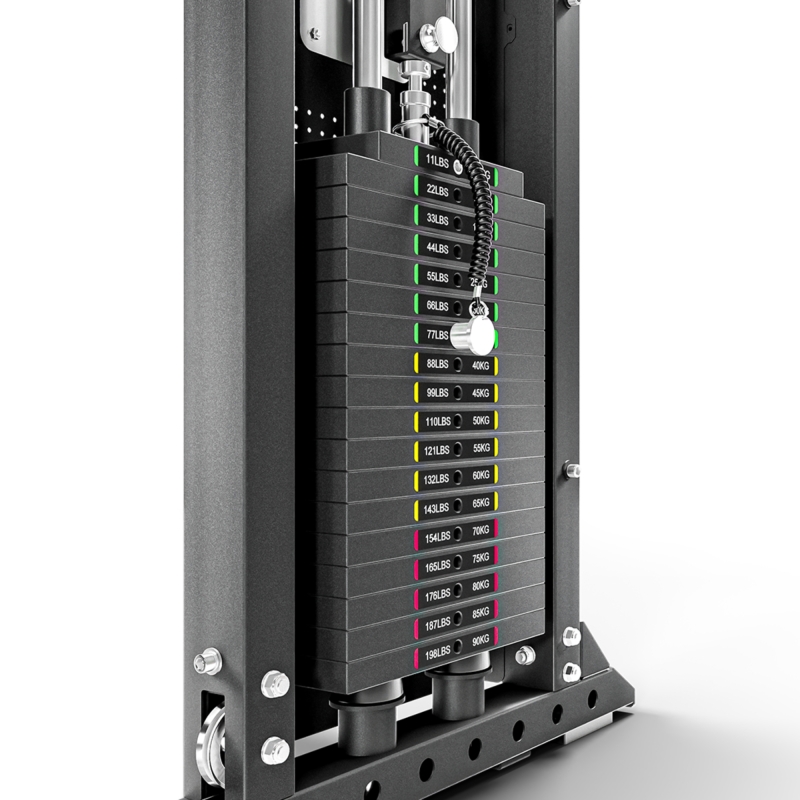

• 2:1 cable ratio allowing for 5.5lbs(2.5kg) weight jumps and extended cable travel
• 2000lb Rated commercial cables
• Sealed Bearing free running quality Nylon pulleys
• Cable Cross over distance 800mm /31.4”
• Cable Travel 2:1 – 2150mm
• Full width span of pivot arms 78.8"
• Height from base of unit to highest point of pivot arm 78.8"
• Height from base of unit to lowest point of pivot arm 16.5"

Specification

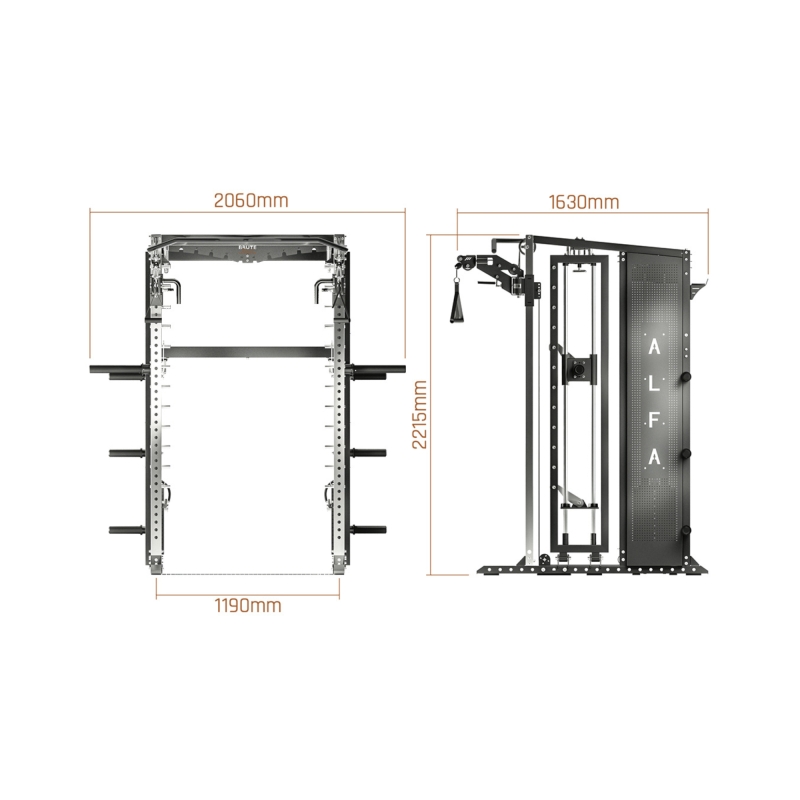

• Exterior Dimension
  • Height: 2215mm/87.2”
  • Width: 2060mm/81.1” Includes smith bar sleeves
  • Width: 1190mm/46.8” of main frame (not including smith)
  • Depth: 1630mm/64.1”
• Other Dimensions
  • 1120mm/ 44.1” Interior working width.
  • 2140mm/ 84.25”Height from base to base of the chin up bar

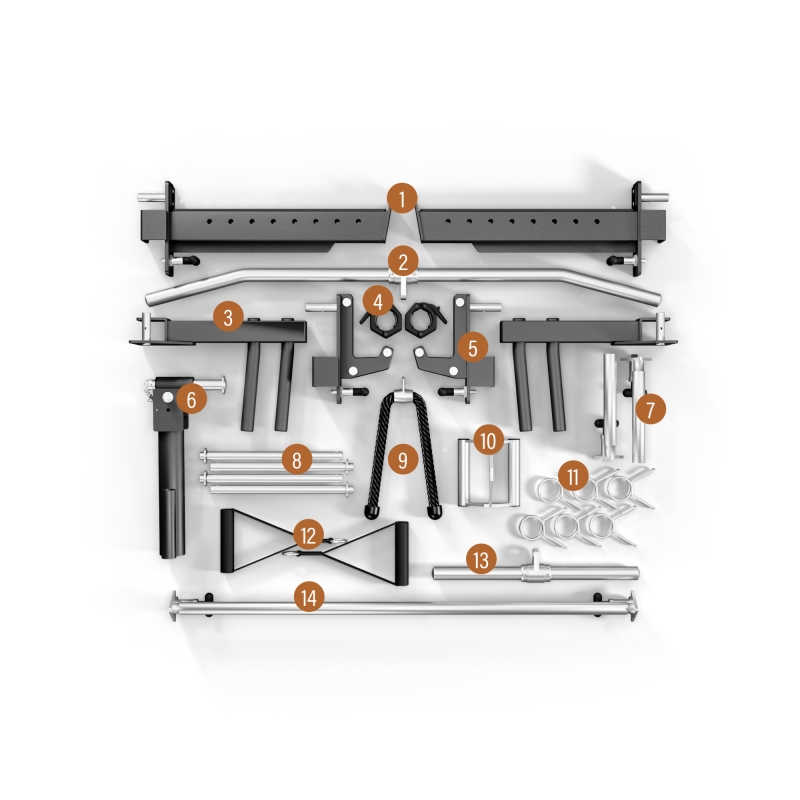

ATTACHMENTS

1. Spotter Arms
2. Lat Bar
3. Dipping Handles
4. 2x Snap Lock Collars
5. J-Hooks
6. Landmine(Core Trainer)
7. 2x Short Smith Handles
8. 4x Band Pegs
9. Tricep Rope
10. Close Grip Handle
11. 6x Spring Lock Collars
12. 2x D-Handles
13. Bicep/Tricep Bar
14. Long Smith Bar

Warranty

INSTALLATION

• Installation Process (this is not a difficult process, just time consuming, you got this!)
• Unpack the crate and transport the parts to the room you are setting it up in
• Follow the BRUTEforce ALFA-CUT manual. Note updated versions may be sent via email.
• Please remember only hand tighten bolts until all steps are completed, then go through and fully tighten all bolts
• Installation of the ALFA CUT on average can take 5-7 hours in one sitting, 2 people are needed and we recommend spacing it over a couple of days

WARRANTY

• Lifetime Structural frame warranty
• 2 years cable & pulley warranty
• 12 months attachments
• 90 day upholstery
