You’re here: Shop / Strength / All-In-One Trainers

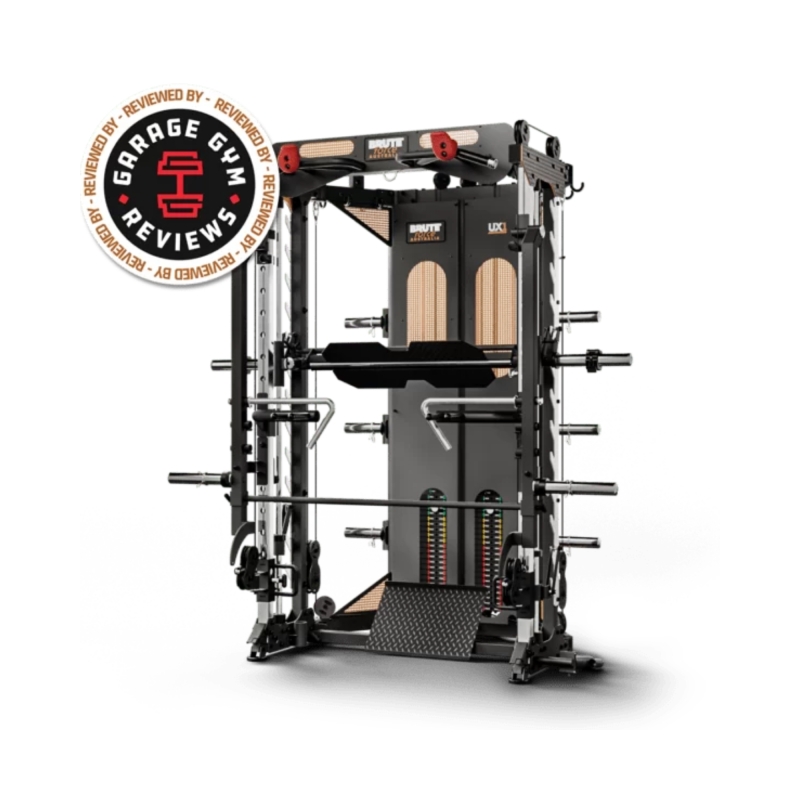

BRUTEforce® UX1 Functional Trainer with Fold

DELIVERY LEAD TIME 12-16 WEEKS

Contact us   for a quotation



Free shipping

New for 2026

Exclusively available from CYC Fitness

Description

The evolution of this All-In-One Functional Trainer has put it in a league of its own. Every addition and upgrade over time serves a purpose and consideration to the ever-evolving fitness industry.

The 70+ exercises featured in our Exercise Guide video are only some of the many available with the UX1. All this “functionality” plus the space saving Folding feature and the high-class design and finishes positions the UX1 at the forefront of Functional Trainers.

Product features

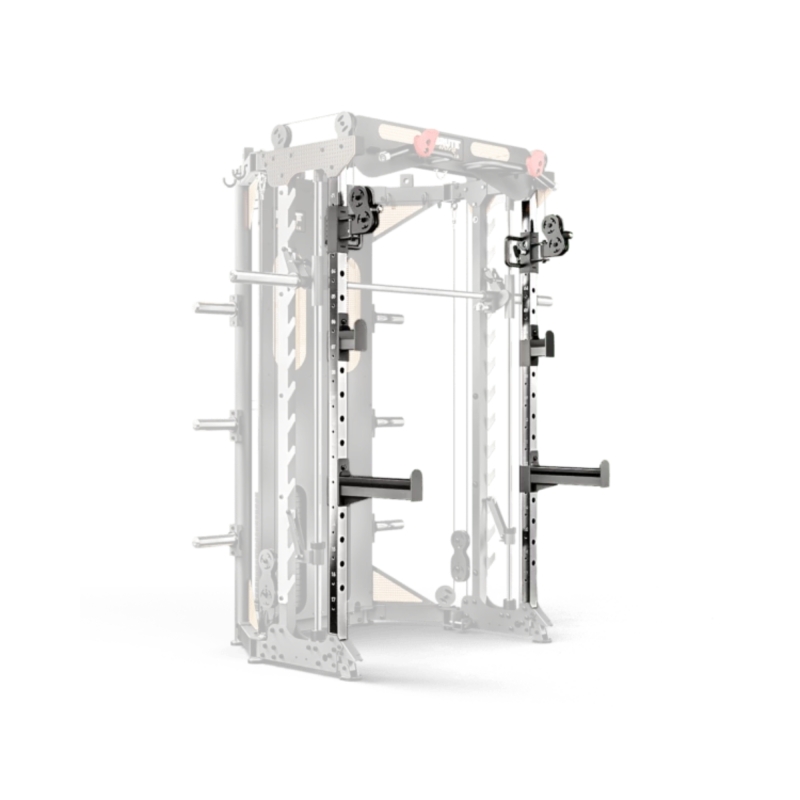

The Half Rack

  • 16 height settings for the Heavy Duty J Hooks & Spotter Arms
  • Uprights 50x50mm
  • Half Rack Holes 25mm
  • Half Rack Maximum J-Hook Height- 1740mm/68.5”
  • Width of Half Rack (Outside): 1245mm/49”
  • 16 Gauge Steel
  • Max weight rating – 450kg/990Lbs Static Weight
  • Steel multi grip chin up with added climbing grips, 200kg/440Lbs Static Weight Maximum
  • Attachments included for half rack: Dipping Handles, Pulleys, Jammers arms, Leg Anchor , J Hooks & Spotter Arms for your half rack.

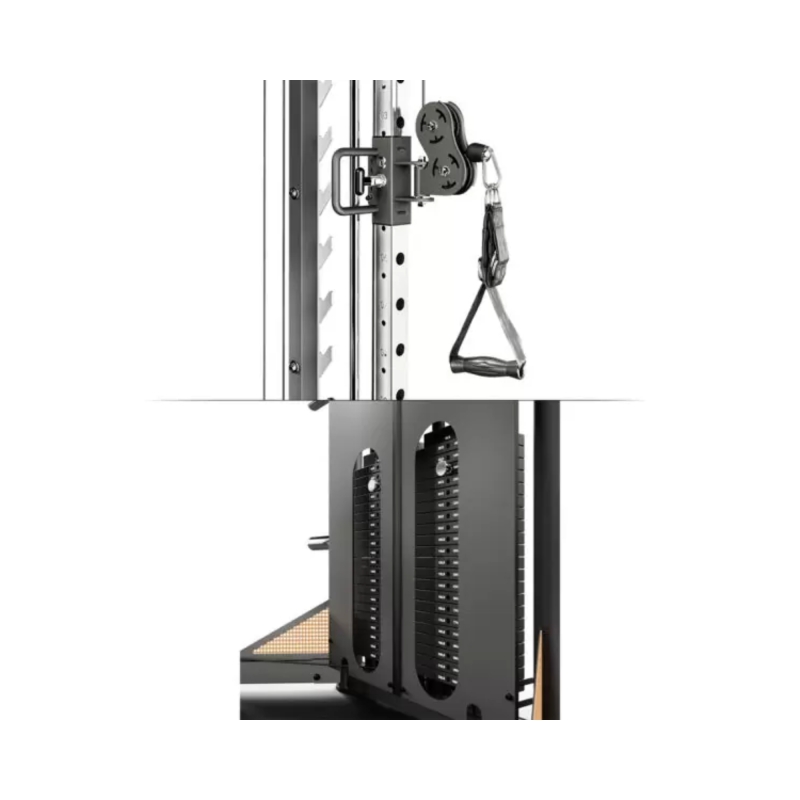

Stacks & Pulleys

PULLEYS Dual, heavy duty swivel pulleys on the front power rack form an essential component of this machine. A fixing point for the many attachments included with the UX1, there is little you cannot perform with this cable system.

  • 17 different height adjustments
  • 2:1 cable ratio allowing for 5lbs weight jumps and extended cable travel
  • 2000lb Rated commercial cables
  • Sealed Bearing free running quality Nylon pulleys
  • Cable Cross over distance 900mm /35.4”
  • Cable Travel – 2250mm

Smith Machine

Featuring the Live Smith Machine Bar which has been designed to have the feel closer to that of a free barbell. The slight movement in the bar helps the user’s body to follow closer to its natural line when executing a squat movement, also the extra play in the bar encourages the core to engage.
  • Safety Spotters for added protection.
  • 12 steel racking points with gun rack
  • Smith bar weight 18.5kg/41Lbs
  • Smith bar diameter 30mm
  • Smith bar loadable sleeve space 30cm
  • Smith bar max height 1765mm/69.5” - Smith bar Max rack 1900mm/74.8”
  • 25mm Self-aligning linear bearings
  • Smith bar rated to 300kg/661Lbs

The Jammer Arms

An innovative and exciting way to add variety to your workouts. The jammer arms which fix to the front power rack allow for more explosive movements. These sturdy, well designed attachments can utilize the twin weight stacks, Olympic weight plates, or both. Perform a new range of exercises with these formidable arms.
  • The Jammer Arms
    • Easy to attach.
    • Jammer arm Measurements -1370mm/54”
    • Jammer arm weight (individually) 12.7kgs/28Lbs
    • Jammer arms can be attached to the pulleys to create a more consistent resistant.
    • Jammer arms can also be used with Olympic weight plates to create a more gravitational.
    • 3 handle adjustment points
    • Connector rod provided to use both jammer arms simultaneously (they also can function individually)

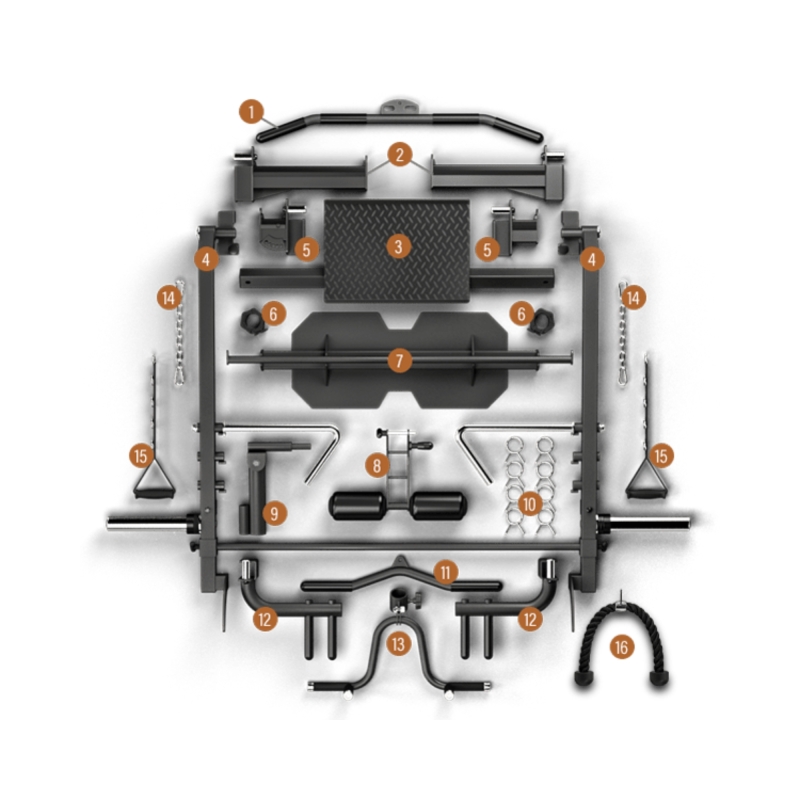

Included Accessories

  1. Lat bar
  2. Spotter arms
  3. Jammer foot plate
  4. Jammer arms
  5. “J” hooks
  6. Snap lock collars
  7. Leg press plate
  8. Leg anchor
  9. Core trainer
  10. Spring lock collars
  11. Short bar
  12. Dipping handles
  13. Row handle
  14. Chain lengths
  15. “D” Handles
  16. Tricep Rope

Specification

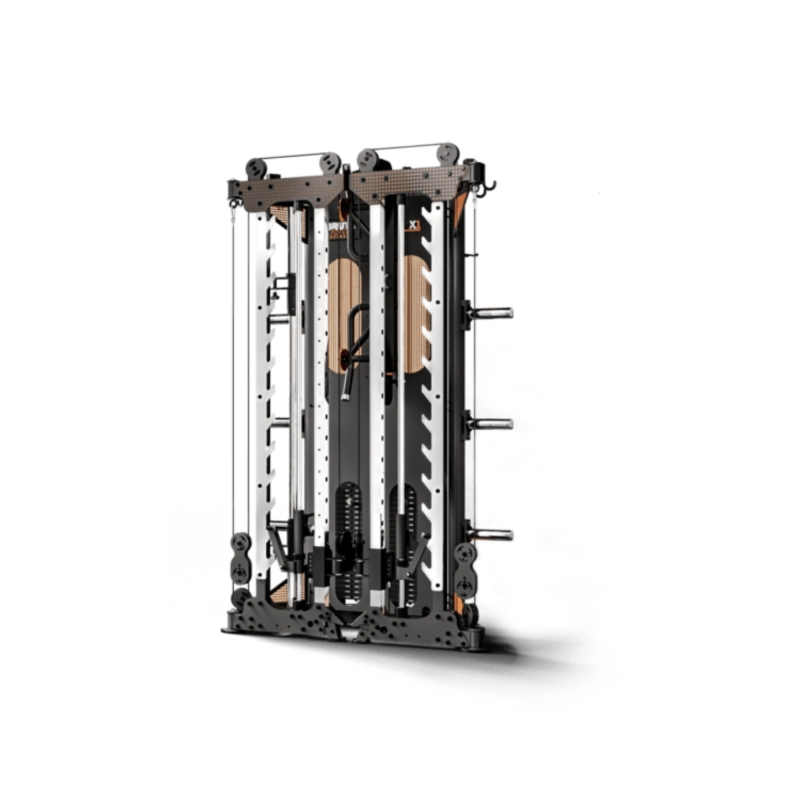

Engineered with space in mind, this Functional Trainer can transform from a depth of 125cm (50″) to as little as 55cm (22″) in less than 30 seconds without compromising exercise function.

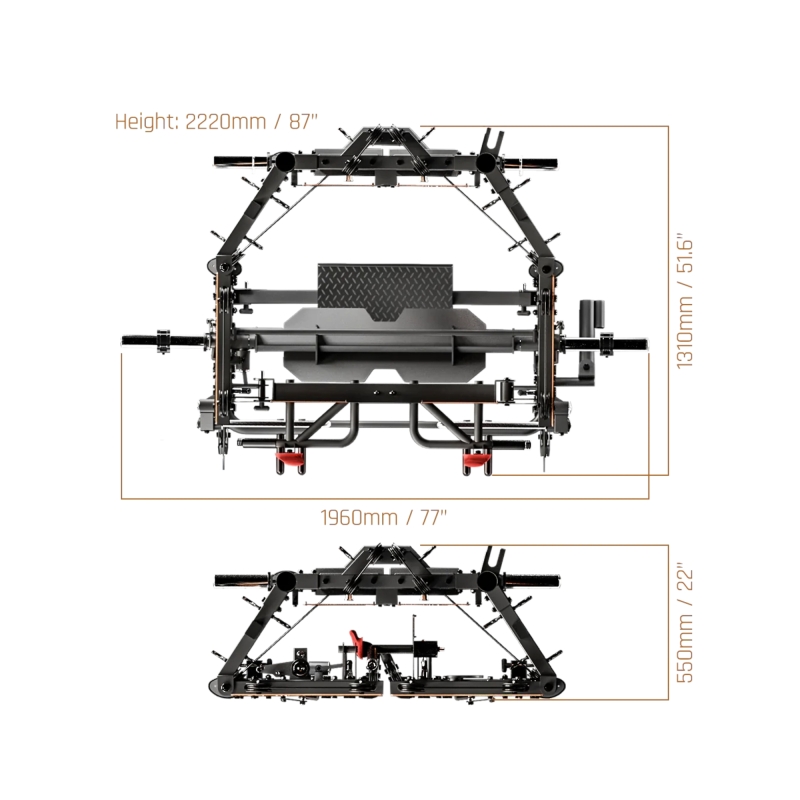

  • Exterior Dimensions
    • Height 2220mm/87”
    • Width 1960mm/77”
    • Depth 1310mm/51.5” (Only 550mm / 21.5” Folded)
  • Interior dimensions
    • 1140mm/ 45” between uprights.
    • 2065mm/ 81” floor to chin up bar
    • 800mm/31.5” weight stacks to front uprights
  • Shipping Crate Information
    • Crate 1 – 672Lbs 86”x40”x16” / 305kgs 2.18m x1.02m x 0.40m
    • Crate 2 – 452Lbs 28”x23”x9”. / 205kg 0.70m x 0.59m x 0.21m

Warranty

  • Lifetime Structural frame warranty
  • 2 years cable & pulley warranty
  • 12 months attachments
  • 90 day upholstery
